MCP Advanced Configuration

Control how the gateway authenticates, forwards context, and connects to upstream MCP servers.

When you add an MCP server to the registry, the UI handles the basics — server name, URL, auth type, static headers. That’s enough for most setups.

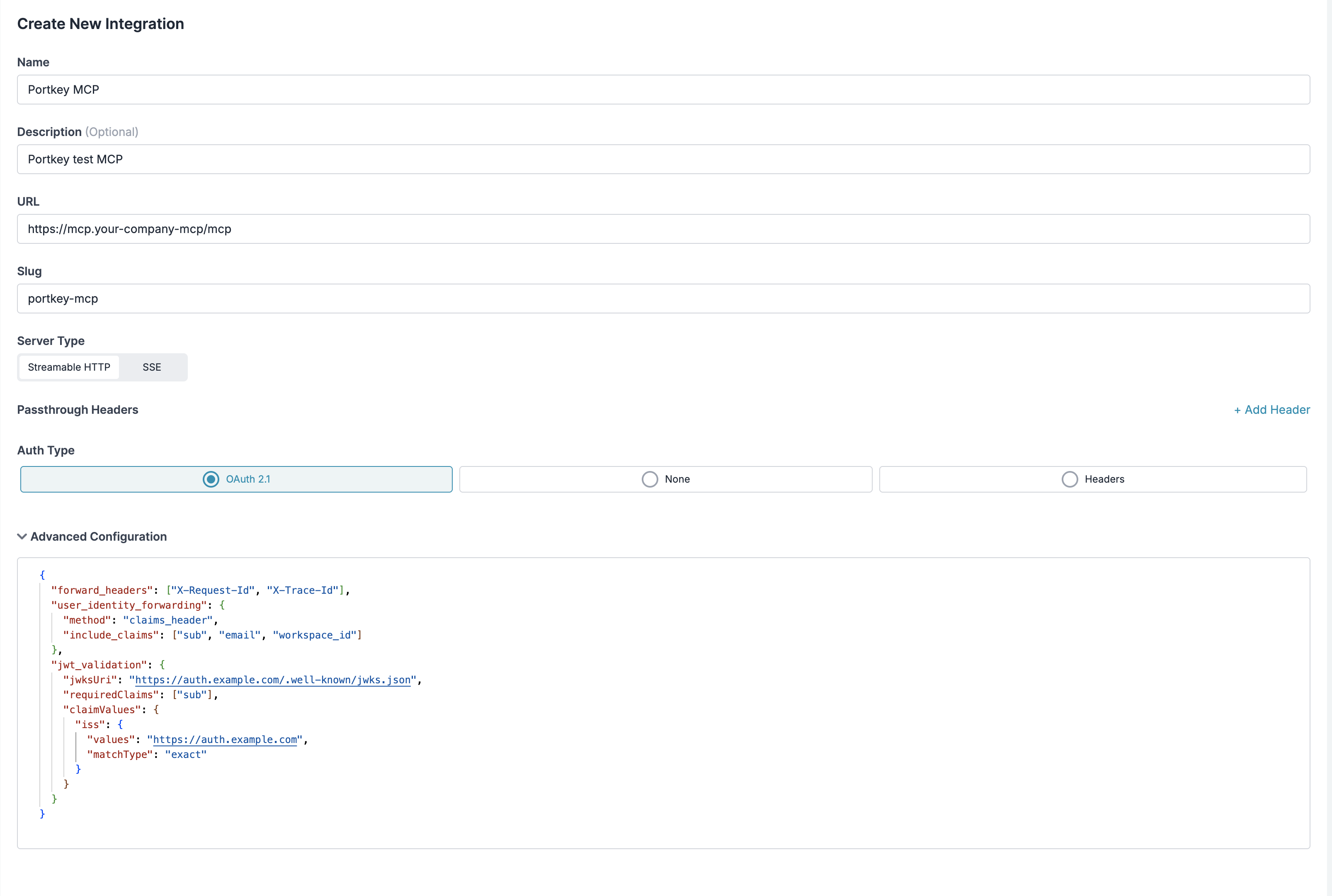

Advanced Configuration is the JSON field at the bottom of the integration form.

It unlocks everything the UI fields don’t cover:

• Forward runtime headers like trace IDs or tenant context to the upstream server
• Tell the MCP server who’s calling by forwarding authenticated user identity
• Validate tokens at the edge before requests ever reach the upstream server
• Customize OAuth behavior when the upstream server’s defaults don’t work
• Bring your own auth with an external identity provider for enterprise SSO

---

What You Can Configure

Key	What it does	When you need it
forward_headers	Pass client request headers to the upstream server	Distributed tracing, tenant context, custom metadata
oauth_metadata	Override OAuth discovery defaults	Upstream server needs non-standard OAuth config
user_identity_forwarding	Tell the upstream server who is making the request	Per-user authorization, audit logging, personalization
jwt_validation	Validate client JWTs at the gateway edge	Bring-your-own IdP, enforce auth before proxying
external_auth_config	Use an external OAuth provider instead of Portkey’s	Enterprise SSO with your own IdP

---

Forward Headers

Forward specific headers from the incoming client request to the upstream MCP server. Unlike static headers, these are dynamic — they capture whatever the client sends at runtime.

Two modes: allowlist (only forward listed headers) and all-except (forward everything except listed headers).

{
  "forward_headers": ["X-Request-Id", "X-Trace-Id", "X-Tenant-Id"]
}

Forwarded headers have the lowest priority — they never override auth headers or static values you’ve configured.

Forwarding Headers

Allowlist vs all-except modes, priority rules, and full configuration options.

---

OAuth Metadata

Override the OAuth endpoints and parameters that Portkey discovers from the upstream server’s /.well-known/oauth-authorization-server. Only relevant when Auth Type is OAuth 2.1.

{
  "oauth_metadata": {
    "authorization_endpoint": "https://auth.example.com/authorize",
    "token_endpoint": "https://auth.example.com/token",
    "scopes_supported": ["read", "write", "admin"]
  }
}

All fields are optional. Provided values override auto-discovered defaults.

OAuth Client Metadata

Full list of overridable OAuth fields and registration customization.

---

User Identity Forwarding

After authenticating a user, Portkey can forward their identity to the upstream MCP server. The server gets to know who is making the request — without implementing its own auth.

Three methods:

Method	What the upstream server receives
claims_header	JSON object with user claims in X-User-Claims header
bearer	Original OAuth access token in Authorization header
jwt_header	Portkey-signed JWT with claims in X-User-JWT header

{
  "user_identity_forwarding": {
    "method": "claims_header",
    "include_claims": ["sub", "email", "workspace_id"]
  }
}

Identity Forwarding

Method comparison, claim selection, custom headers, and JWT verification.

---

JWT Validation

Validate incoming client JWTs before proxying to the upstream server. The gateway rejects invalid tokens at the edge — the upstream server never sees them.

Supports three validation methods: JWKS URI, inline JWKS keys, and token introspection (RFC 7662). You can also enforce required claims and match claim values.

{
  "jwt_validation": {
    "jwksUri": "https://auth.example.com/.well-known/jwks.json",
    "algorithms": ["RS256"],
    "requiredClaims": ["sub", "email"]
  }
}

JWT Validation

JWKS, introspection, claim matching (exact, contains, regex), and full options reference.

---

External Auth Config

Enterprise only — available for self-hosted deployments.

Use an external identity provider (Okta, Auth0, Azure AD, Cognito) instead of Portkey’s built-in OAuth. Users authenticate with corporate credentials.

{
  "external_auth_config": {
    "authorization_endpoint": "https://idp.example.com/authorize",
    "token_endpoint": "https://idp.example.com/token",
    "scope": "openid profile mcp"
  }
}

Supports both dynamic client registration and pre-registered client credentials.

Bring Your Own Auth

Full setup for external OAuth providers, dynamic registration, and pre-registered credentials.

---

Combining Options

You can combine multiple keys in a single configuration:

{
  "forward_headers": ["X-Request-Id", "X-Trace-Id"],
  "user_identity_forwarding": {
    "method": "claims_header",
    "include_claims": ["sub", "email", "workspace_id"]
  },
  "jwt_validation": {
    "jwksUri": "https://auth.example.com/.well-known/jwks.json",
    "requiredClaims": ["sub"],
    "claimValues": {
      "iss": {
        "values": "https://auth.example.com",
        "matchType": "exact"
      }
    }
  }
}

This validates the client JWT, forwards trace headers, and sends user identity to the upstream — all in one integration.
